High Density VNA Heavy Duty Racking

1.Product Introduction

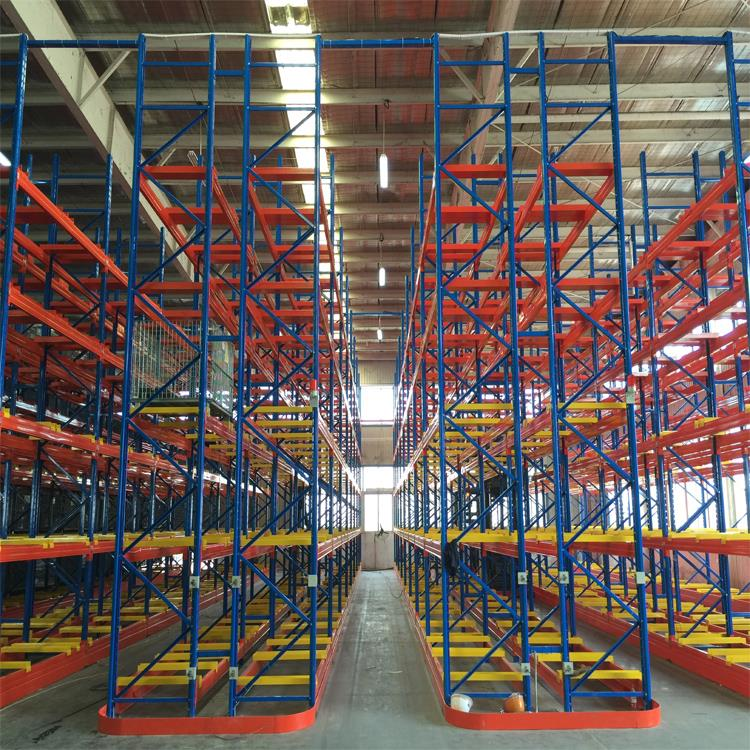

Very Narrow Aisle Heavy Duty Racking (VNA) takes pallet racking as main structure, but with guide rails installed on the two bottom sides of the aisle. The guide rails are made from unequal angle steel. Specialized high forklifts are needed to slide along guide rails. The aisle is slightly wider than pallet to realize high density storage. VNA succeeded the advantage of pallet racking: all goods are 100% selective by forklift trucks at any time. High access efficiency and high density brings high productivity and cost benefit to VNA logistics center.































2.Advantages:

(1) Maximize space utilization up to 100%, with an average of 95% space usage. Achieve excellent inventory rotation, 50% higher floor utilization, and full access to high-level storage positions.

(2) Floor-mounted free-roaming forklifts deliver exceptional flexibility, operating efficiently in every aisle.

(3) Boost throughput speed significantly with specialized forklift trucks for high-efficiency pallet handling.

(4) Safe and controlled material handling creates a secure, hazard-free warehouse working environment.

3.Applications:

(1) Ideal for large-volume goods with strict demands for fast access and efficient sorting in high-density warehousing.

(2) Perfect solution for warehouses or logistics centers facing a sudden increase in storage space demand.

(3) Suitable for businesses with high requirements for logistics efficiency and optimized warehouse throughput.

(4) Recommended for warehouses with a clear net height of 8m or higher to maximize vertical storage space.

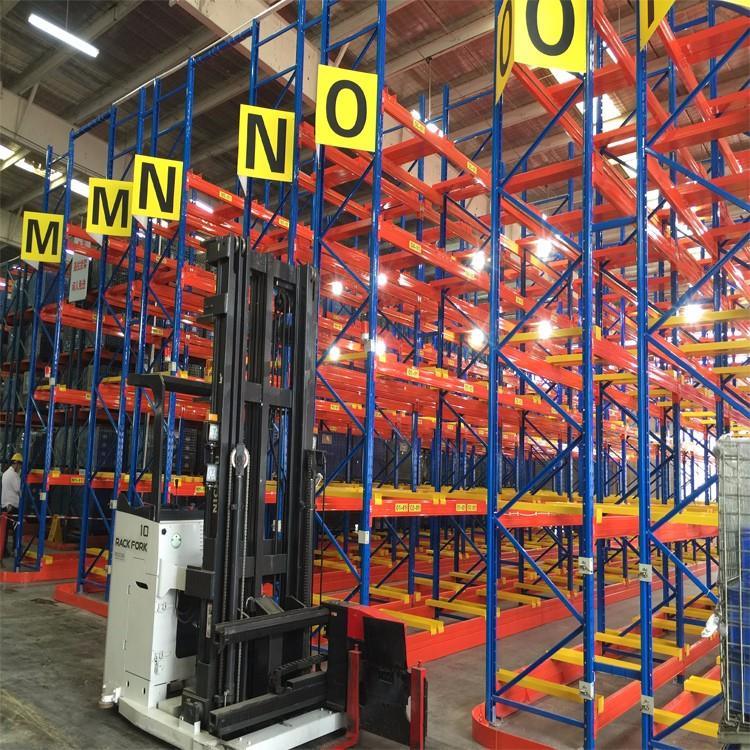

(5) Designed for special VNA rotating forklifts; no outdoor operation is required, making it ideal for indoor narrow aisle applications.

4.Remark:

(1)VNA aisles are much narrower than aisles of ordinary pallet racking with the width approx. 1600mm-2000mm, which largely improved space efficiency. VNA requires skilled drivers of special forklift rotating trucks to be more careful.

(2)Guide rails for VNA are approx. 200mm high, which can be set during civil work or during racking installation with protect plate. With guidance of the rail, accident risks can be reduced and the requirement of driving skills is also lower than drive-in pallet racking.

(3)Fire suppression and seismic need to be considered. Hard wearing and very flat floor designed for heavy static / live loads are required.

5.Real Case:

(1)Food & beverage cold chain































(2)E-commerce fulfillment warehouses































(3)Construction & building materials
